Competencies covered

MSFFL2001: Use flooring technology sector hand and power tools

Carpet installation


Image for slide 1
Audio for slide 1 (mp3 |6|KB)

Carpet is a 'textile' floor covering, meaning it is woven from natural or synthetic yarns.

The two most common methods for installing carpet are:

  • laying over a cushioned underlay, using a gripper strip around the perimeter to hold the carpet in place

  • fixing directly to the floor using an adhesive.

The tools shown below are used in either or both of these installation methods.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

Cutting

Carpet wall trimmer
For trimming off excess carpet along the line of the wall.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

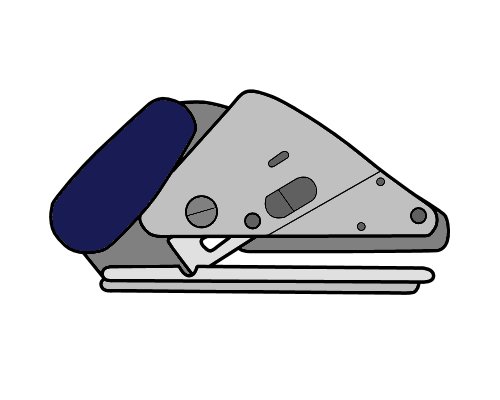

Loop pile cutter
For cutting loop pile carpet with a stiff backing.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

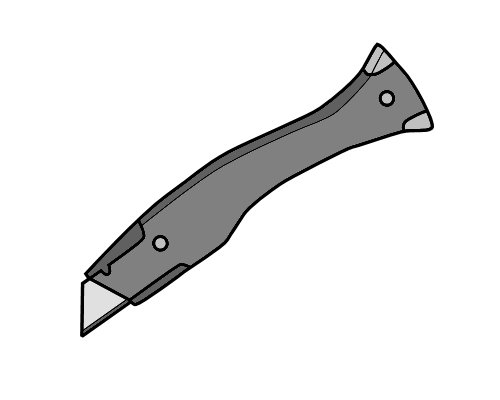

Utility knife
For cutting and trimming, especially around doorways and other objects.

hearing icon
Image for slide 5
Audio for slide 5 (mp3 |6|KB)
Carpet trimming knife
A more traditional alternative to the utility knife.

hearing icon
Image for slide 6
Audio for slide 6 (mp3 |6|KB)

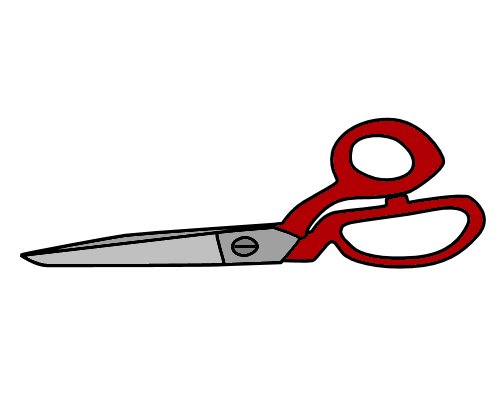

Carpet shears
For cutting and trimming seam edges in woven or knitted carpet.

hearing icon
Image for slide 7
Audio for slide 7 (mp3 |6|KB)

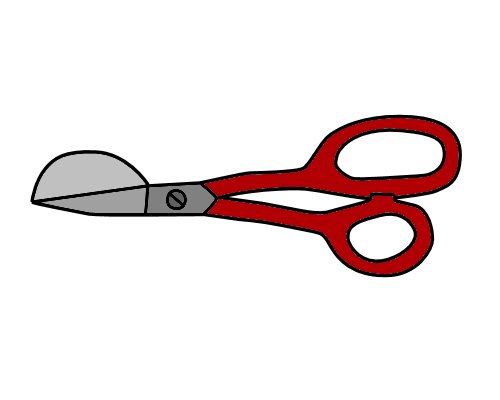

Napping shears
Similar to carpet shears, but with a 'duckbill' to prevent gouging while trimming.

hearing icon
Image for slide 8
Audio for slide 8 (mp3 |6|KB)

Seaming

Heat bond iron
Used for thermal bonding of carpet seams.

hearing icon
Image for slide 9
Audio for slide 9 (mp3 |6|KB)

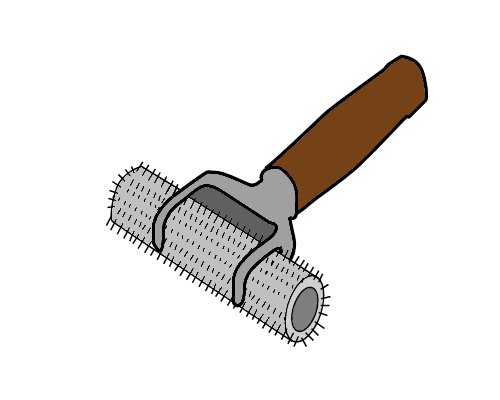

Spiked carpet roller
Used for rolling out bonded carpet seams.

hearing icon
Image for slide 10
Audio for slide 10 (mp3 |6|KB)

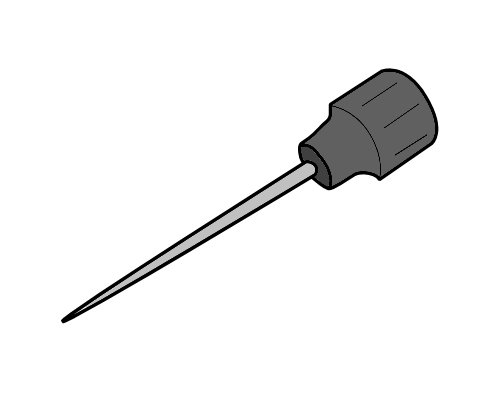

Awl
Used for scribing lines and picking seams.

hearing icon
Image for slide 11
Audio for slide 11 (mp3 |6|KB)

Stretching, fitting and general

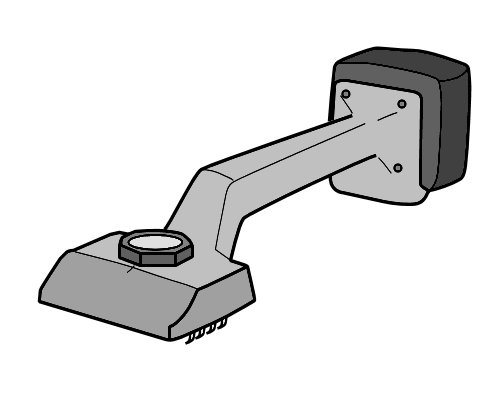

Knee kicker
Used to push the edge of the carpet up to the wall.

hearing icon
Image for slide 12
Audio for slide 12 (mp3 |6|KB)

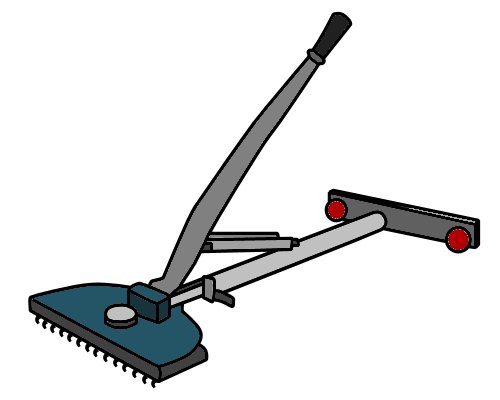

Power stretcher
For stretching the carpet from one wall to another.

hearing icon
Image for slide 13
Audio for slide 13 (mp3 |6|KB)

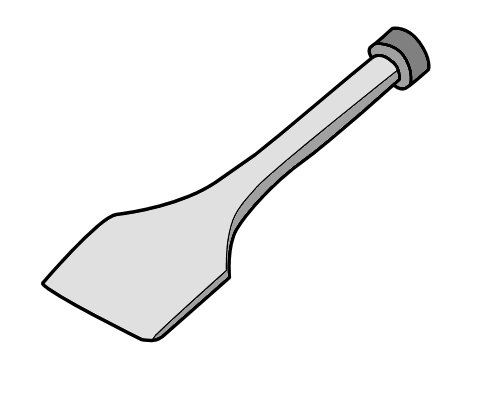

Carpet stair tool
Used when laying carpet on stairs to push the carpet into the fold.

hearing icon
Image for slide 14
Audio for slide 14 (mp3 |6|KB)

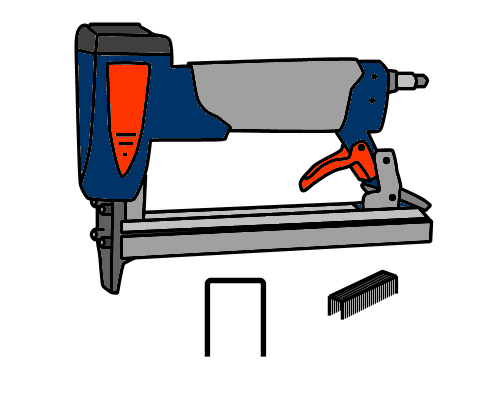

Staple gun
For fixing carpet into position, particularly on stairs, and for fixing hard underlays.

hearing icon


Learning activity

Audio 15 (mp3 |6|KB)

Some carpet layers use other tools in addition to those shown above, such as a sewing needle for hand-sewing seams.

What other tools do you know of that are used to lay carpet? You may have used them yourself, or you may have seen them elsewhere.

Write down the name of each tool and what it's designed for.
